Recessed linear 24" - 120-277-347V, 0-10V dimming, 5CCT (LNR24-CC-V-WH)

Image may not reflect selected features
No Image
Available
Recessed linear 24" - 120-277-347V, 0-10V dimming, 5CCT
additional image
BASE PRICE:
$
158
00
/ / 1
($158.00 / 1)
WAS
$
175
00
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
LNR24-CC-V-WH
Dimensions:
Height: 1.88"
Width: 2.50"
Length: 23.75"
Availability:
  • Manufacturer availability unknown.
Description
Details
Downloads

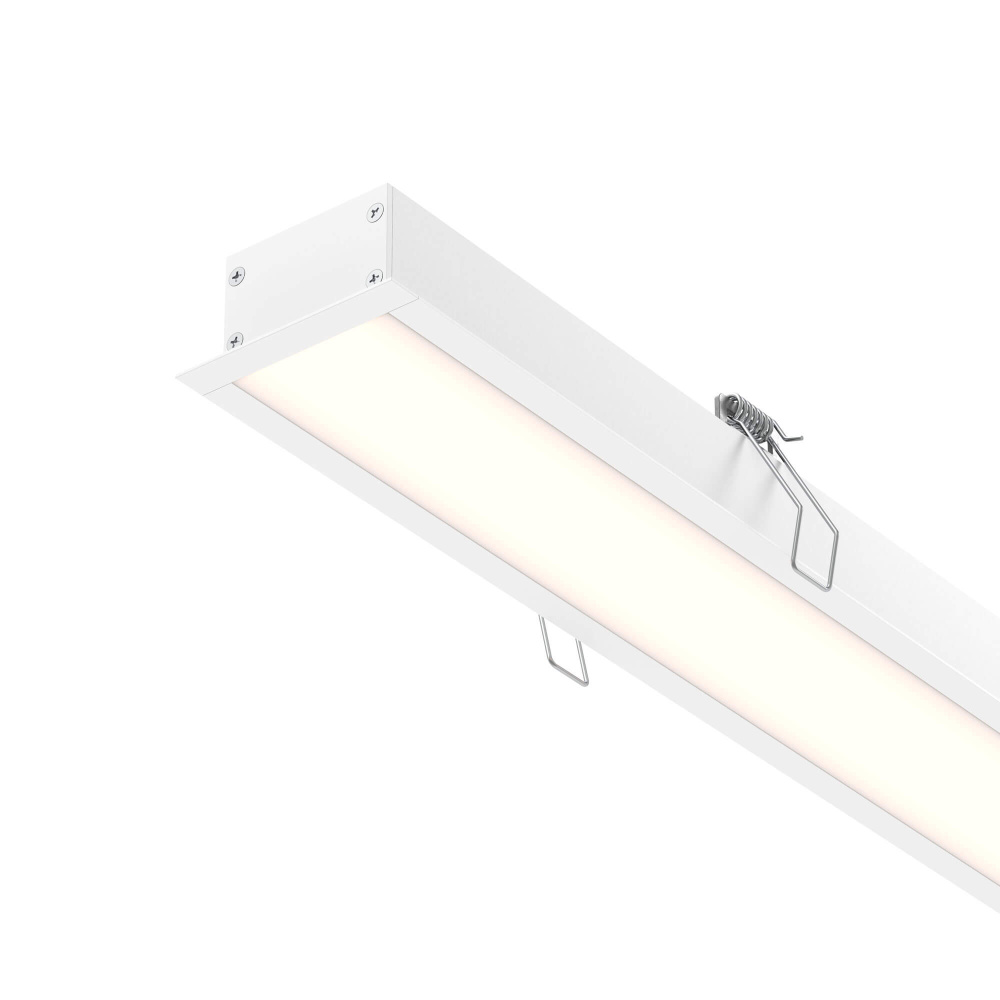

The Boulevard series, an architectural recessed lighting channel that can be installed in a wide range of commercial and residential environments. Add depth to ceiling planes with a visible separation, or seamlessly daisy-chained to create dramatic effects.
Internal #:
6Y4XD
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White
Option:
Energy Star , Title 24 , Outdoor , Wet Rated , Dry Rated
Voltage:
100-120
Lumens:
1101-1600
Kelvin:
2501-3000
Location Rating:
Wet Rated
Wattage:
20w
Category:
Recessed
Subcategory:
Linear
Finish:
White
Family:
Boulevard
Voltage:
120-277-347 V
Number of Bulbs:
1 Bulbs
Bulb Dimmable:
Yes
Bulb Hours:
50000
Harmonized Codes:
9405.11.0091
Kelvin:
2700, 3000, 3500, 4000, 5000
Material:
Aluminum Extrusion
Ship Carton Height:
3.7
Ship Carton Length:
25
Ship Carton Width:
4.1
Ship Weight:
2.75
Warranty:
5 Years Limited
Air-Tight (ASTM E283--4):
Yes
Beam Angle:
105°
Bulb CRI:
90
Country of Origin:
China
Delivered Lumens:
1725
Dimmer Type:
0-10V
Energy Star:
Yes
IC Certification:
Yes
Indoor:
Yes
IP Rating:
IP20
JA8:
Yes
Lens Material:
Frosted PC
Location Rating:
Dry Rated
Max Wattage:
20 W
Maximum Working Temperature:
40°C
Minimum Working Temperature:
-20°C
Safety Rating:
ETL Approved
Shipping Master Height:
12
Shipping Master Length:
25
Shipping Master Quantity:
6
Shipping Master Weight:
21
Shipping Master Width:
8.7
Title 24:
Yes
Wiring:
Hardwired


Additional Information:
  • 108° beam spread
  • Every fixture includes a junction box with integrated dimmable driver
  • Ideal operating temperature: -20° to 40° C
  • Switch-selectable CCT: 2700K/ 3000 K/3500 K/4000 K/5000 K
